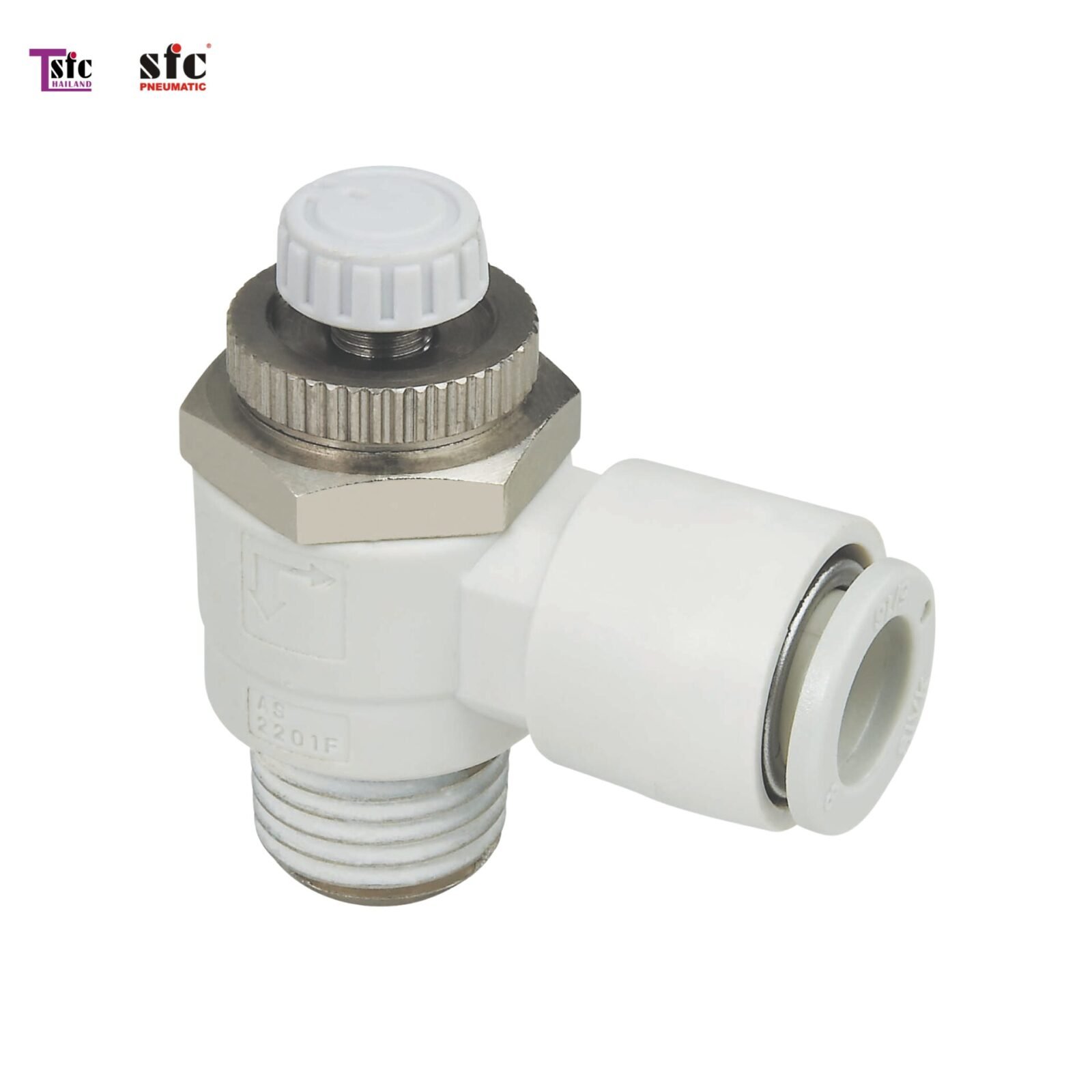

| Applicable tubing OD ΦD |
Model | Connecting thread | Connector Hex | Connector shape | |||||
| Specifications | A/A1 | H | S | L | Φ | Φ1 | B | ||
| Φ4 | AS1211F-M5-04 | M5X0.8 | 4 | 3.2 | 8 | 20 (17.6) | 10.8 (9.6) |
9.6 | 12 |
| AS2211F-01-04S | 1/8″ | 7.5 | 3.5 | 12 | 21.5 | 14.2 | 13 | ||
| AS2211F-02-04S | 1/4″ | 10.5 | 4 | 17 | 25 | 18.4 | 14 | ||
| Φ6 | AS1211F-M5-06 |
M5X0.8 |
4 | 3.2 | 8 | 22.5 (1B) | 13.3 (11.8) |
9.6 | 12 |
| AS2211F-01-06S | 1/8″ | 7.5 | 3.5 | 12 | 23 | 14.2 | 13 | ||
| AS2211F-02-06S | 1/4″ | 10.5 | 4 | 17 | 24.2 | 18.4 | 14 | ||
| AS3211F-03-06S | 3/8″ | 11 | 4 | 19 | 28.8 | 22.5 | 18 | ||
| Φ8 | AS2211F-01-08S | 1/8″ | 7.5 | 3.5 | 12 | 24.5 | 15.8 | 14.2 | 13 |
| AS2211F-02-08S | 1/4″ | 10.5 | 4 | 17 | 26 | 18.4 | 14 | ||
| AS3211F-03-08S | 3/8″ | 11 | 18 | 32.6 | 22.5 | 18 | |||
| Φ10 | AS2211F-01-10S | 1/8″ | 7.5 | 3.5 | 12 | 29.6 | 19 | 14.5 | 12 |
| AS2211F-02-10S | 1/4″ | 10.5 | 4 | 17 | 35.2 | 18.4 | 14 | ||
| AS3211F-03-10S | 3/8″ | 11 | 18 | 31.6 | 22.5 | 18 | |||
| AS4211F-04-10S | 1/2″ | 14.5 | 24 | 33.3 | 28 | 21.6 | |||
| Φ12 | AS3211F-02-12S | 1/4″ | 10.5 | 4 | 18 | 30.6 | 21.3 | 18.4 | 14 |
| AS3211F-03-12S | 3/8″ | 11 | 19 | 32.3 | 22.5 | 18 | |||
| AS4211F-04-12S | 1/2″ | 14.5 | 24 | 34.6 | 28 | 21.8 | |||
