| Type | Port size | Effective area | Temperature | CV Value | Exhaust port size |
Position&coil | Operating pressure |

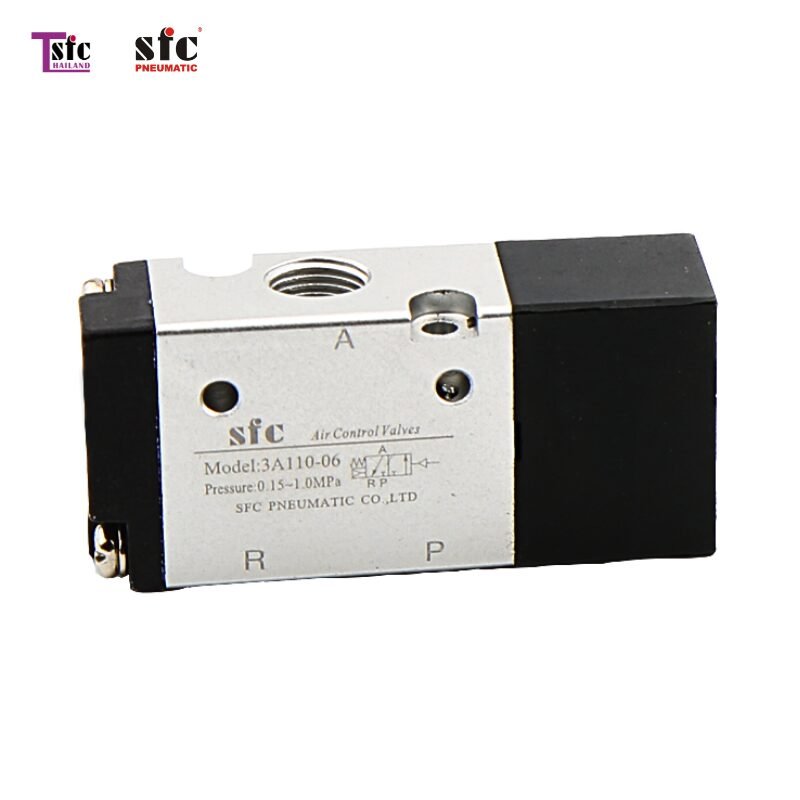

| 3A110-06 | PT1/8 | 12mm² | -5-50°C | 0.56 | PT1/8 |
2/2 way Single air |
0-9 kgf/cm² |
| 3A210-08 | PT1/4 | 16mm² | -5-50°C | 0.78 | PT1/8 | ||

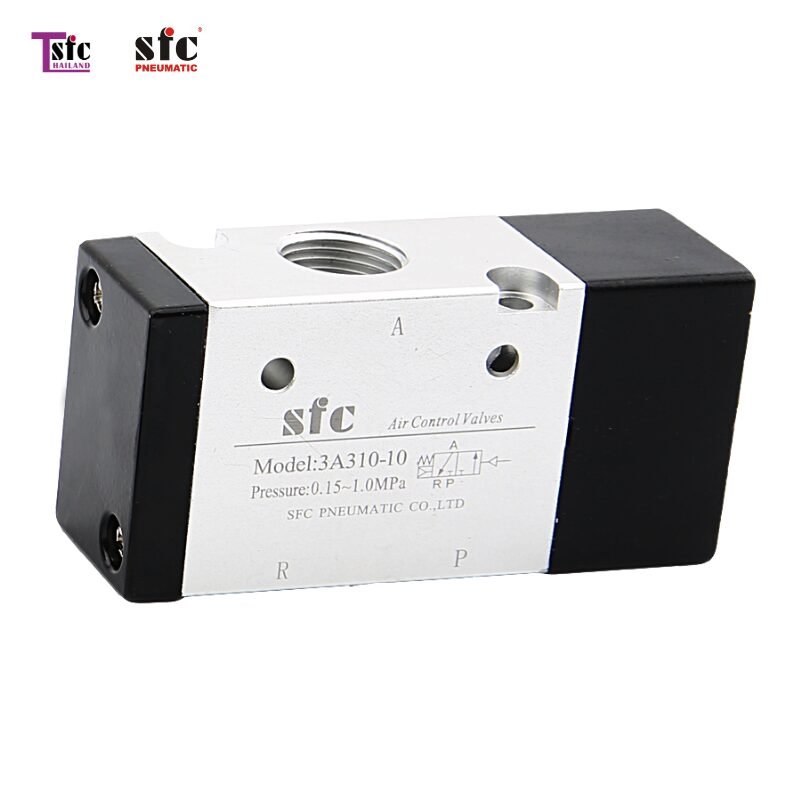

| 3A310-10 | PT3/8 | 30mm² | -5-50°C | 1.40 | PT1/4 | ||
| 3A410-15 | PT1/2 | 50mm² | -5-50°C | 2.80 | PT1/2 | ||
| 3A120-06 | PT1/8 | 10mm² | -5-50°C | 0.56 | PT1/8 |
3/2 way Double air |
|

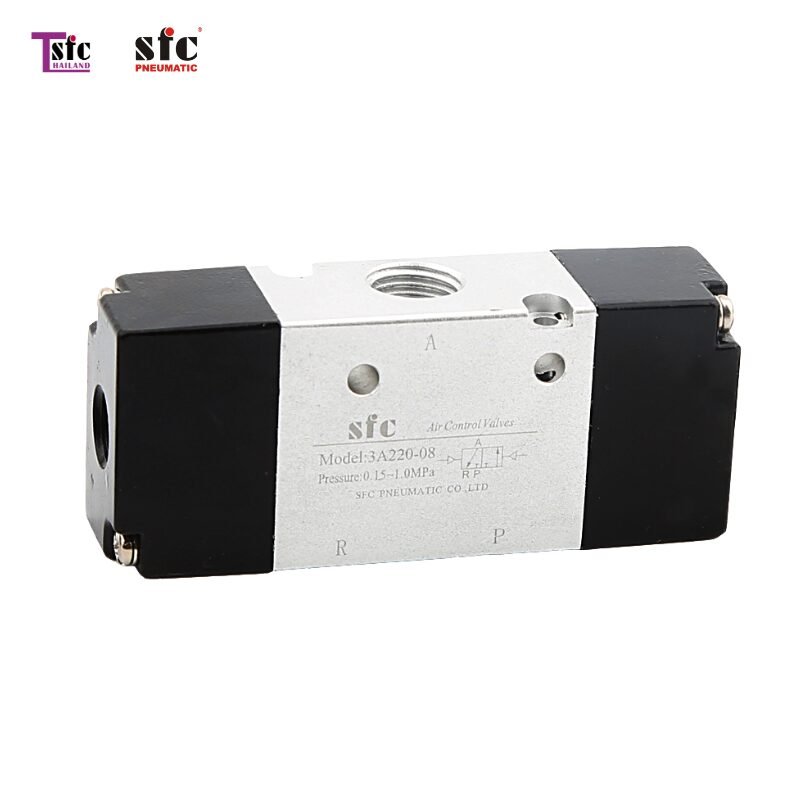

| 3A220-08 | PT1/4 | 14mm² | -5-50°C | 0.78 | PT1/8 | ||
| 3A320-10 | PT3/8 | 25mm² | -5-50°C | 1.40 | PT1/4 | ||
| 3A420-15 | PT1/2 | 50mm² | -5-50°C | 2.80 | PT1/2 |
