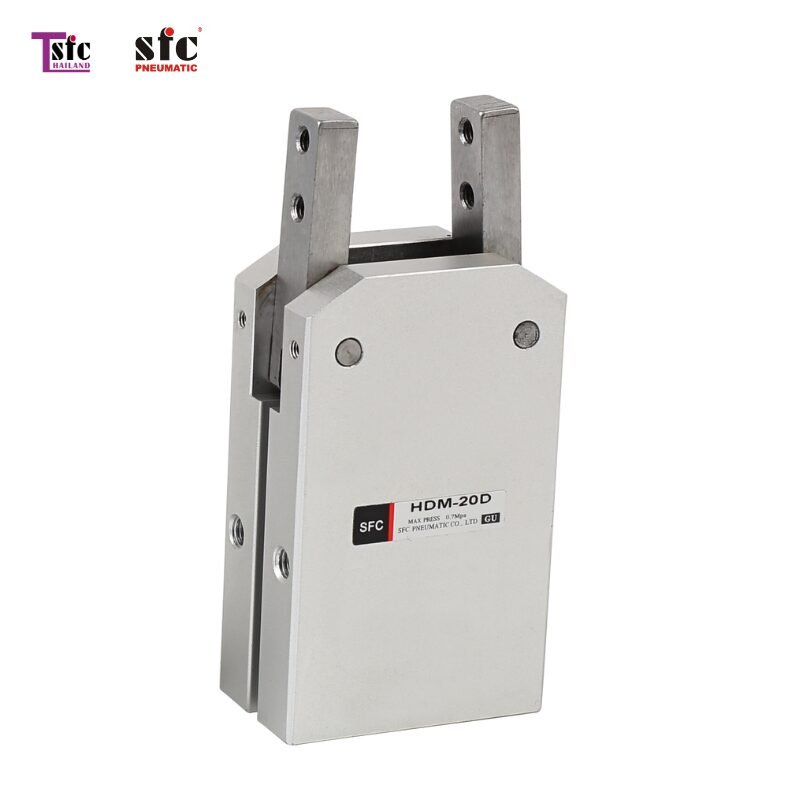

| Model | HDM-10 | HDM-16 | HDM-20 | HDM-25 | HDM-32 | |
| Cylinder bore (mm) | 10 | 16 | 20 | 25 |
32 |
|
| Action form | Compound movement type | |||||
| Using fluids | Air | |||||
| Operating pressure range | 1.5-7 (150-700) | |||||
| Service temperature range | 0-60 | |||||
| The highest frequency of action (sub/min) | 100 | |||||
| For oil | Cylinder | Free supply mode | ||||
| Bent arm position | Need (Lubricating oil smearing) | |||||
| Theoretical holding moment (M) kgf-cm |
Closed side | 0.8 | 2.4 | 4.7 | 7.5 | 10 |
| Open side | 0.5 | 1.8 | 3.5 | 6.0 | 8.5 | |
|
Maximum claw arm contact length (L) mm |
30 | 40 | 60 | 70 | 85 | |
| Clamping jaw opening and closing stroke mm | 4 | 8 | 12 | 14 | 16 | |
| Piping caliber | M3X0.5p | M5X0.8 | ||||
| Magnet device | Magnet attached device | |||||
