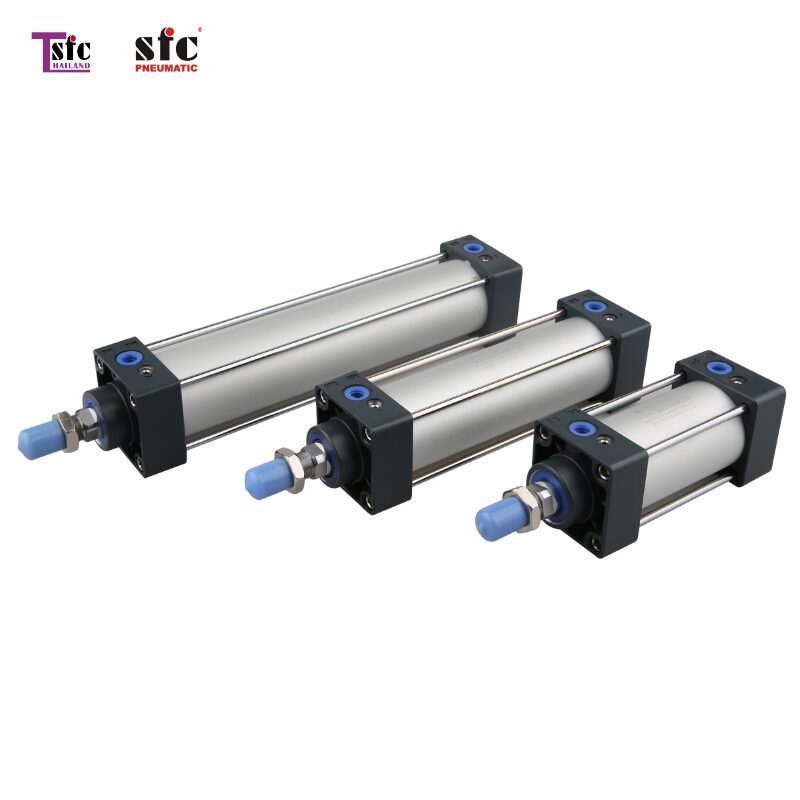

STANDARD CYLINDER SERIES SC

STANDARD CYLINDER SERIES SC

฿999.00

คำอธิบายสินค้าอย่างสั้น

Add to Cart

คำอธิบาย

Cylinder Stroke
Internal daimeter
(mm)		 Standard Stroke Max
Stroke		 Permissible
Stroke
32 25 50 75 100 125 150 175 200 250 300 350 400 500

1000

 2000
40 25 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 1200 2000
50 25 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 1000 1200 2000
63 25 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 1000 1500 2000
80 25 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 1000 1500 2000
100 25 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 1000 1500 2000
125 25 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 1000 1500 2000
160 25 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 1000 1500 2000



Internal diameter (mm)   A     A1     A2     B     C     D     E     F     G     H     K   K   O     S     T     V
32 140 187 182 47 93 28 32 15 27.5 22 M10X1.25 M6X1 G1/8 45 33 12
40 142 191 185 49 93 32 34 15 27.5 24 M12X1.25 M6X1 G1/4 50 37 16
50 150 207 196 57 93 38 42 15 27.5 32 M16X1.5 M6X1 G1/4 62 47 20
53 153 210 199 57 96 38 42 15 27.5 32 M16X1.5 M8X1.25 G3/8 75 56 20
80 183 258 243 75 108 47 54 21 33 40 M20X1.5 M10X1.25 G3/8 94 70 25
100 189 264 249 75 114 47 54 21 33 40 M20X1.5 M10X1.25 G1/2 112 84 25
125 242 339 314 96 146 60 64 32 40 54 M27X2 M12 G1/2 140 110 32
160 328 480 441 152 176 70 99 53 45 72 M36X2 M16 G1/2 180 145 40
200 343 – – 154 189 75 99 55 50 72 M36X2 M16 G1/2 220 180 40
250 384 – – 189 195 95 119 70 50 84 M42X2 M20 G1/2 280 225 50
320 431 – – 221 210 110 136 85 55 96 M48X2 M24 G3/4 350 280 60
