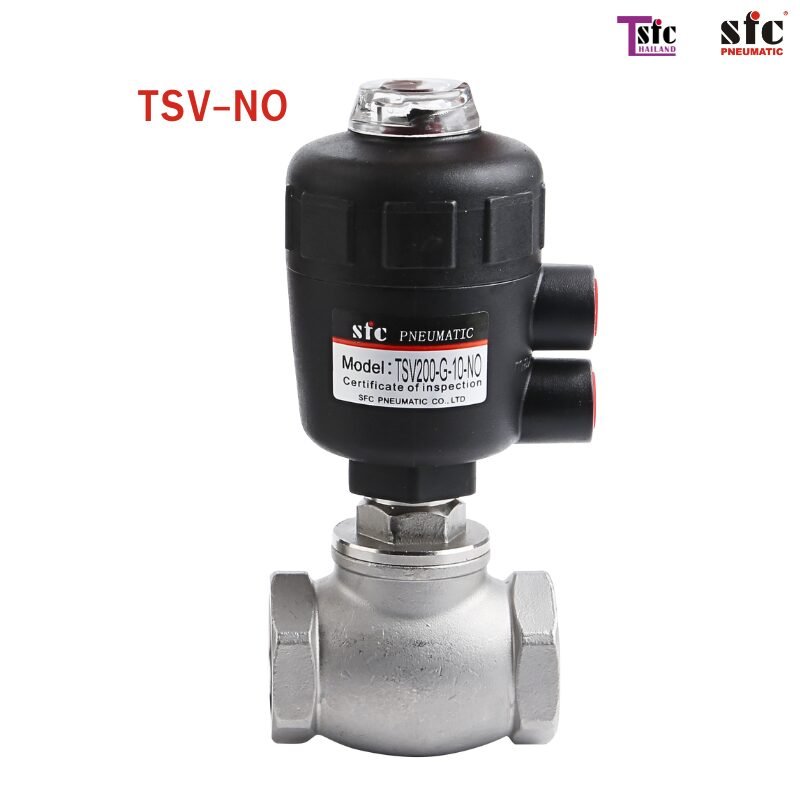

Pneumatic Controlled T Stop Valve TSV-NO

Pneumatic Controlled T Stop Valve TSV-NO

Add to Cart

คำอธิบาย

Model TSV200-G-04 TSV200-G-06 TSV200-G-10 TSV200-G-12 TSV200-G-14 TSV200-G-20 TSV200-G-24
TSV200-G-04-NO TSV200-G-06-NO TSV200-G-10-NO TSV200-G-12-NO TSV200-G-14-NO TSV200-G-20-NO TSV200-G-24-NO
Effective area DN15 DN20 DN25 DN32 DN40 DN50 DN65
Install Stainless steel 304 316/PA, stainless steel aluminum alloy
Movement mode Piston direct acting
Medium Air,Water,Oil,Stram,and any neutral gas.
Pipe Size G1/2 G3/4 G1 G1 1/4 G1 1/2 G2 G2 1/2
Path 13 20 25 32 40 50 65
Kv (m3/h) 4.2 8 19 27.5 42 55 90
Use pressure range MPa 0-1.6 0-1.6 0-1.6 0-1.6 0-1.6 0-1.6 0-1.6
Minimum control pressure MPa 0.3 0.35 0.35 0.35 0.35 0.35 0.35
Actuator size selection mm 40/50 50 50/63 63 63 63/90 90
