| Type | Port size | Effective area | Temperature | CV Value | Power consumption |
Position&coil | operating pressure |
Valtage |
| 4V110-M5 | M5 | 12mm² | -5-50°C | 0.56 | 3VA | 5/2 way Internally piloted acting type Double electrical |
0-9/kgf/cm² | DC12V DC24V DC48V AC24V AC36V AC110V AC220V |
| 4V110-06 | PT1/8 | 16mm² | -5-50°C | 0.78 | 3VA | |||
| 4V210-06 | PT1/8 | 30mm² | -5-50°C | 1.40 | 3VA | |||

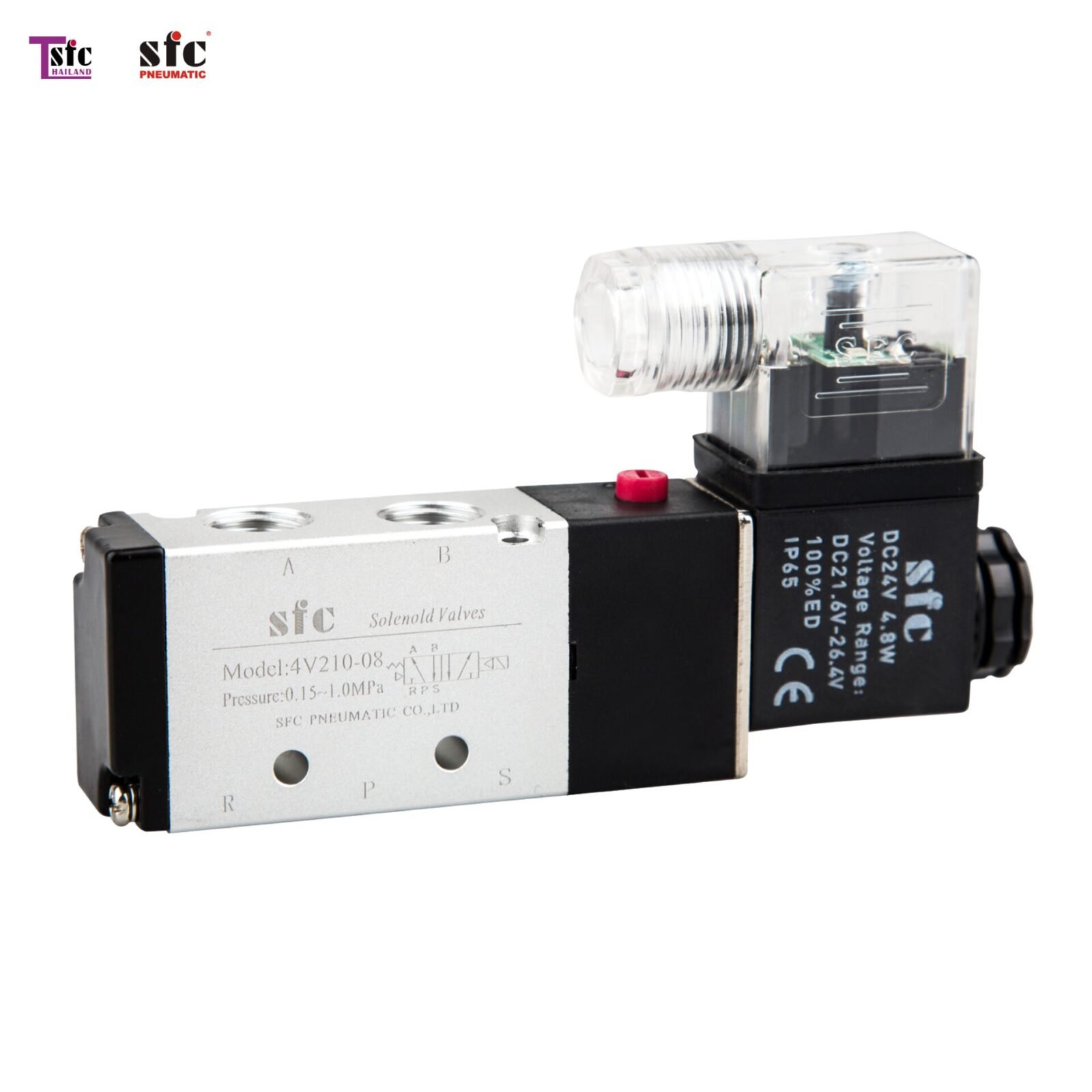

| 4V210-08 | PT1/4 | 50mm² | -5-50°C | 2.80 | 3VA | |||
| 4V310-08 | PT1/4 | 14mm² | -5-50°C | 0.56 | 3VA | 5/2 way Internally piloted acting type Double electrical |
||
| 4V310-10 | PT3/8 | 14mm² | -5-50°C | 0.78 | 3VA | |||
| 4V410-10 | PT3/8 | 25mm² | -5-50°C | 1.40 | 3VA | |||
| 4V410-15 | PT1/2 | 50mm² | -5-50°C | 2.80 | 3VA | |||

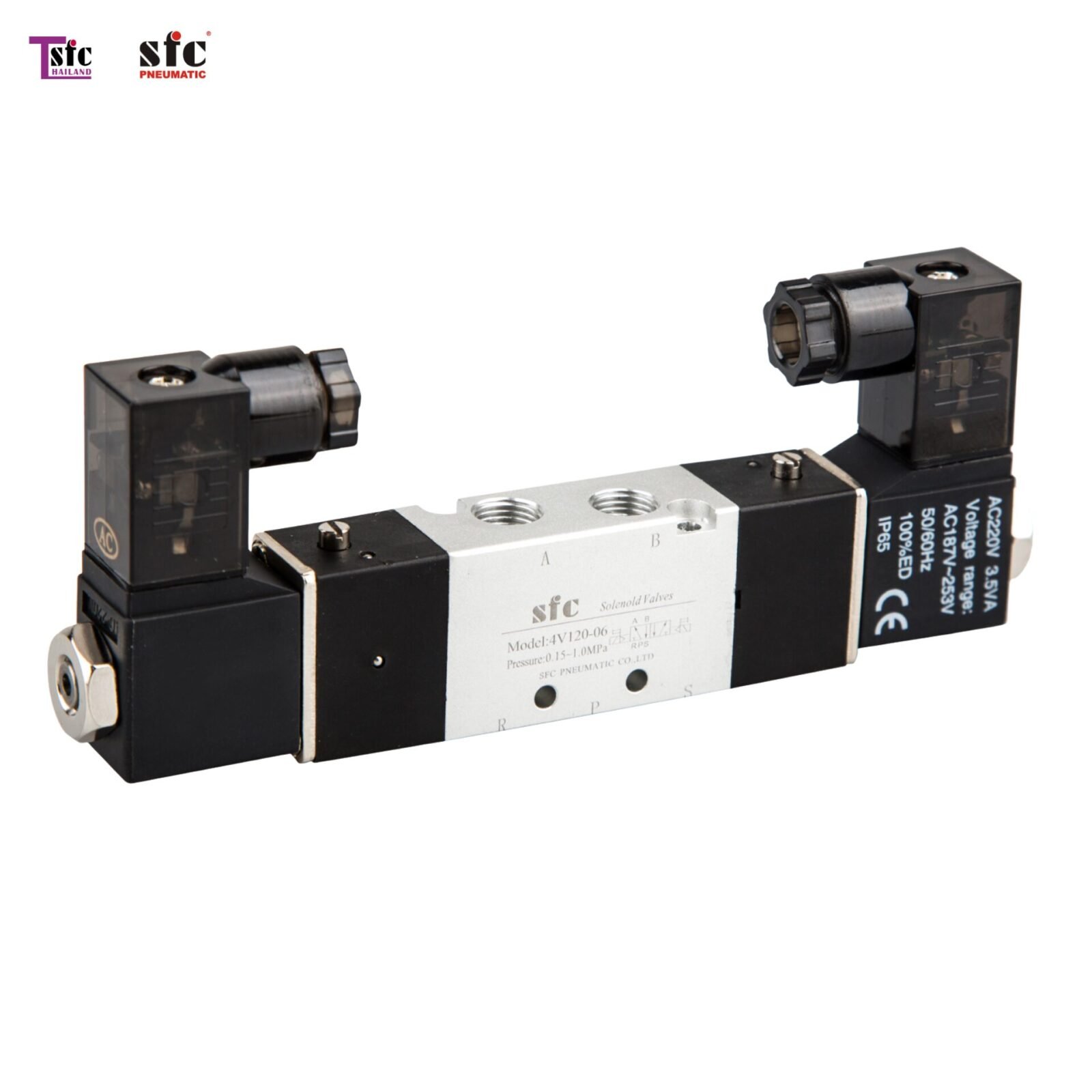

| 4V120-06 | PT1/8 | 7mm² | -5-50°C | 0.67 | 3VA | 5/3 way Internally piloted acting type Double electrical |
||
| 4V220-06 | PT1/8 | 12mm² | -5-50°C | 0.78 | 3VA | |||

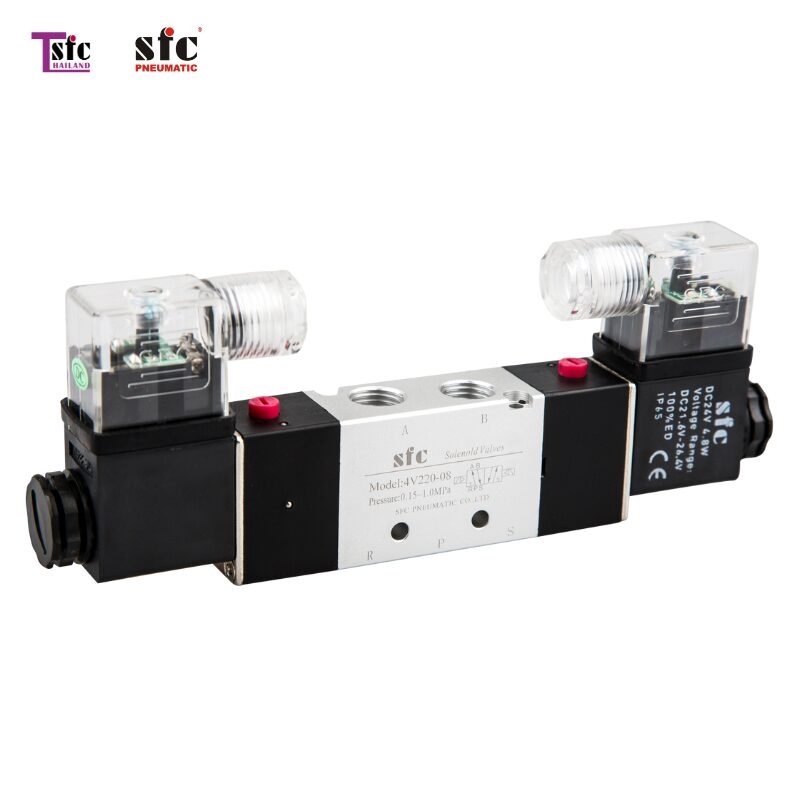

| 4V220-08 | PT1/4 | 18mm² | -5-50°C | 1.68 | 3VA | |||
| 4V320-10 | PT3/8 | 30mm² | -5-50°C | 1.68 | 3VA | |||
| 4V420-15 | PT1/2 | 7mm² | -5-50°C | 0.67 | 3VA | 5/3 way Internally piloted acting type Double electrical |
||
| 4V130C-06 | PT1/8 | 12mm² | -5-50°C | 0.78 | 3VA | |||
| 4V230C-06 | PT1/8 | 18mm² | -5-50°C | 1.68 | 3VA | |||
| 4V230C-08 | PT1/4 | 30mm² | -5-50°C | 1.68 | 3VA | |||
| 4V330C-08 | PT1/4 | 7mm² | -5-50°C | 0.67 | 3VA | 5/3 way Internally piloted acting type Double electrical |
||
| 4V330C-10 | PT3/8 | 12mm² | -5-50°C | 0.78 | 3VA | |||
| 4V430C-15 | PT1/2 | 18mm² | -5-50°C | 1.68 | 3VA | |||
| 4V130E-06 | PT1/8 | 30mm² | -5-50°C | 1.68 | 3VA | |||
| 4V230E-08 | PT1/4 | 7mm² | -5-50°C | 0.56 | 3VA | |||
| 4V330E-10 | PT3/8 | 12mm² | -5-50°C | 0.78 | 3VA | |||
| 4V430E-15 | PT1/2 | 18mm² | -5-50°C | 1.40 | 3VA |
