| Type | Port size | Position&coil | Sectional Area | Thread Pipe | Operating Temperature (°C) |
Working Medium | Standard Voltage |

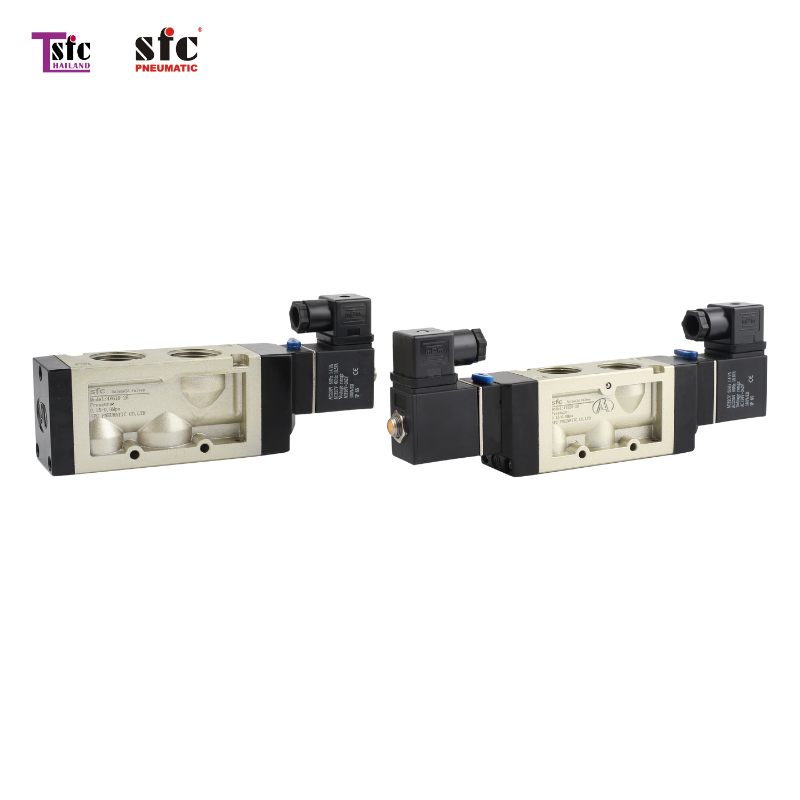

| 4V510-20 | 3/4″ | 5/2 way type Single-Coil Double-Position | 95mm² (Cv=5.0) |
Air Inlet Air Outlet =3/4″ Air Exhaust =1/2″ |
-5-60°C |
40 Micron Filtered Air |
DC 12 V DC 24 V AC 24 V 50/60Hz AC 110 V AC 220 V |
| 4V520-20 | 3/4″ | 5/2 way type Double-Coil Double-Position | |||||
| 4V530C-20 | 3/4″ | 5/3 way type Double-Coil Three-Position Close Type | 70mm² (Cv=4.0) |
||||
| 4V530E-20 | 3/4″ | 5/3 way type Double-Coil Three-Position Exhaust Type | |||||
| 4V530P-20 | 3/4″ | 5/3 way type Double-Coil Three-Position Pressure Type | |||||
| 4V610-25 | 1″ | 5/2 way type Single-Coil Double-Position | 110mm² (Cv=6.0) |
Air Inlet Air Outlet =3/4″ Air Exhaust =1/2″ |
|||
| 4V620-25 | 1″ | 5/2 way type Double-Coil Double-Position | |||||
| 4V630C-25 | 1″ | 5/3 way type Double-Coil Three-Position Close Type | 81mm² (Cv=4.5) |
||||
| 4V630E-25 | 1″ | 5/3 way type Double-Coil Three-Position Exhaust Type | |||||
| 4V630P-25 | 1″ | 5/3 way type Double-Coil Three-Position Pressure Type |
