| Model | Thread Connecting G |
Orifice mm |
CV Value | Working Pressure | Coil Class | Max medium temperature |
||||
| Min Working Pressure |
Max working pressure |
Coil data | Power | |||||||
| VA | W | |||||||||
| Steam oil | Heat Conduct | AV220 | DC24V | |||||||
| GW-10B | 3/8″ | 10 | 4.8 | 0.5 | 20 | 20 | F | 24 | 18 | 300 |

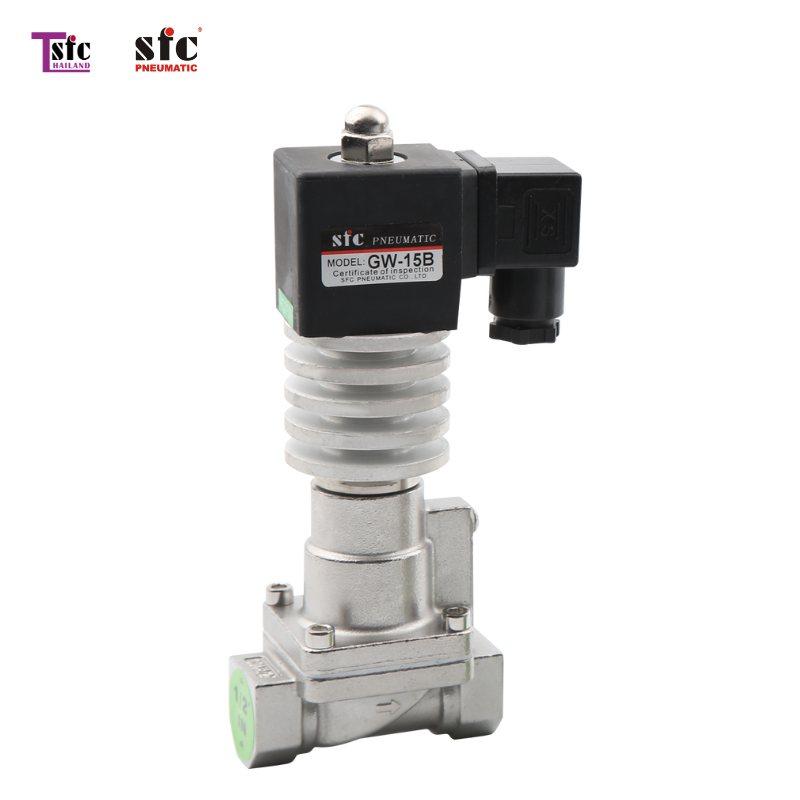

| GW-15B | 1/2″ | 15 | 4.8 | 0.5 | 20 | 20 | F | 24 | 18 | 300 |

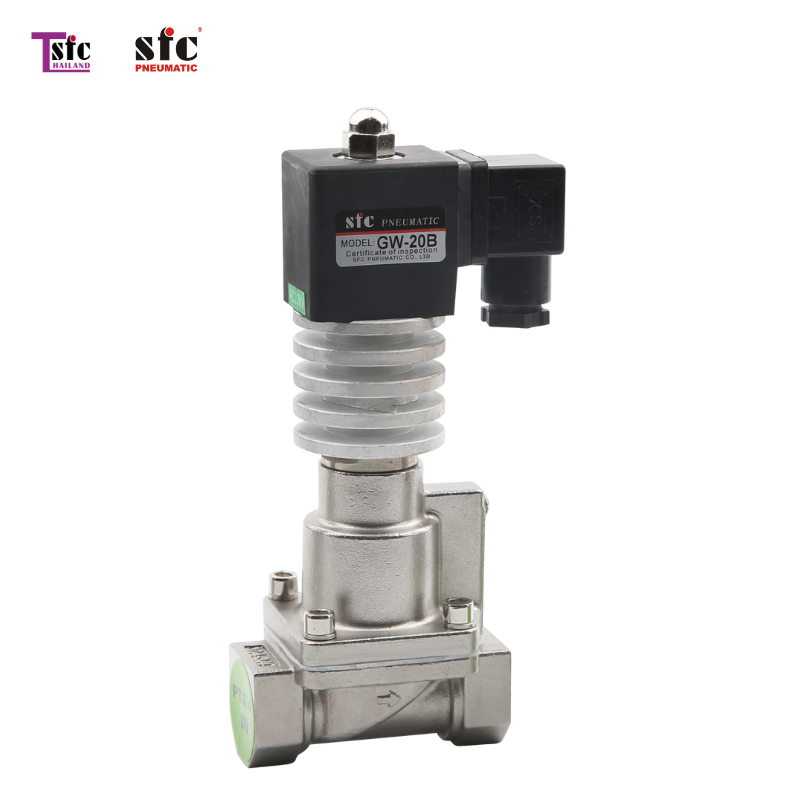

| GW-20B | 3/4″ | 20 | 9 | 0.5 | 20 | 20 | F | 24 | 18 | 300 |

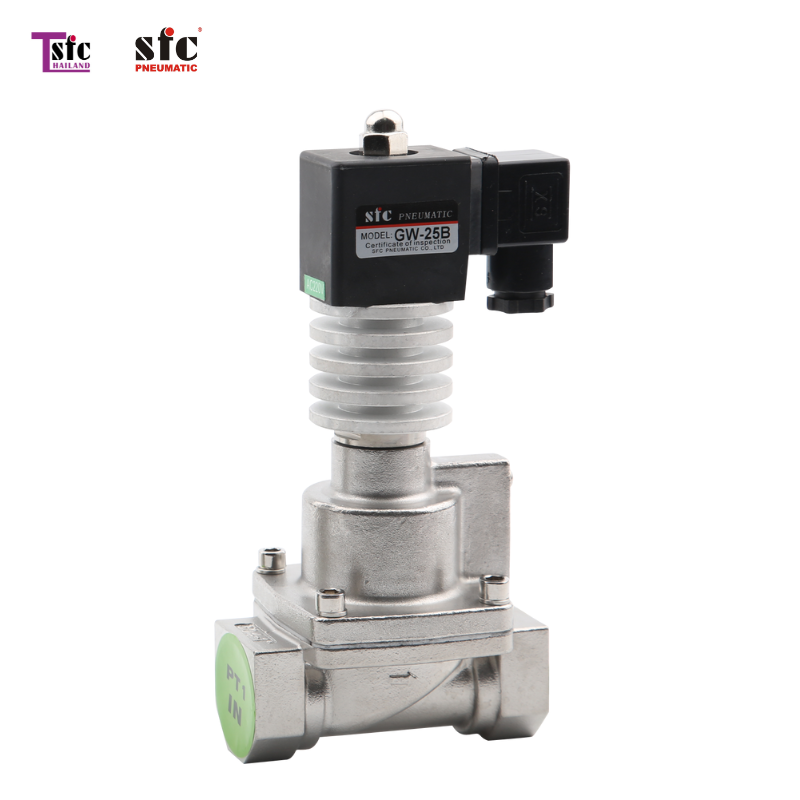

| GW-25B | 1″ | 25 | 13 | 0.5 | 20 | 20 | F | 24 | 18 | 300 |
