| Type | Port size | Effective area | Temperature | CV value | Material of Oil Seal |
Working Medium |
Max.Pressure Resisitance |
Valtage |
| 2L170-10 | PT3/8 | 17mm | -5-185°C | 4.80 | PTFE | Air Water Steam |
1.5MPa | DC12V DC24V AC24V AC110V AC220V |
| 2L170-15 | PT1/2 | 17mm | 4.80 | |||||
| 2L200-20 | PT3/4 | 20mm | 7.60 | |||||
| 2L250-25 | PT1 | 25mm | 12 | |||||
| 2L350-35 | PT1 1/4 | 35mm | 20 | |||||

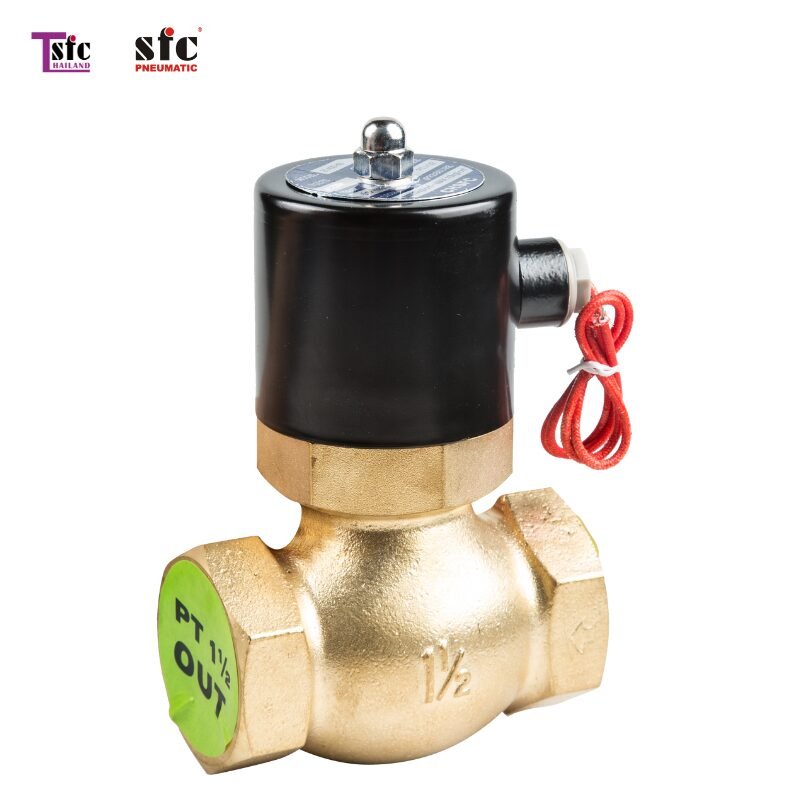

| 2L400-40 | PT1 1/2 | 40mm | 20 | |||||
| 2L500-50 | PT2 | 50mm | 48 |
