คำอธิบาย

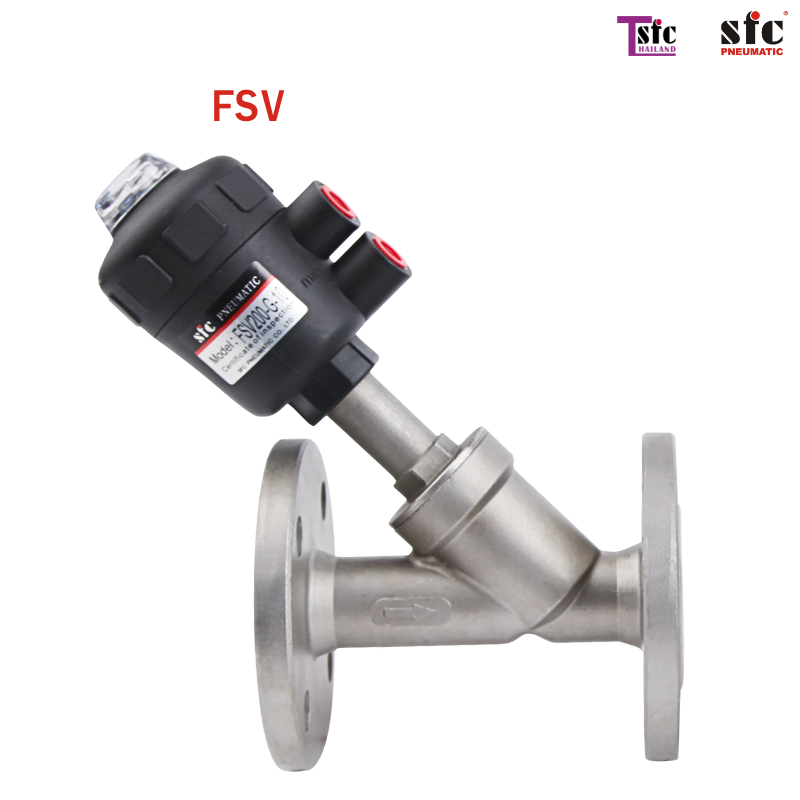

| Model | FSV200-G-04 | FSV200-G-06 | FSV200-G-10 | FSV200-G-12 | FSV200-G-14 | FSV200-G-20 | FSV200-G-24 | FSV200-G-30 | FSV200-G-40 | |
| BFSV200-G-04 | BFSV200-G-06 | BFSV200-G-10 | BFSV200-G-12 | BFSV200-G-14 | BFSV200-G-20 | BFSV200-G-24 | BFSV200-G-30 | BFSV200-G-40 | ||
| Effective area | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | |
| Valve / actuator material | S.S304 316/PA | |||||||||
| Seat Tightness | PTFE/FPM | |||||||||
| Joint seal | PTFE/FPM | |||||||||
| Valve core seal | PTFE/FPM | |||||||||
| Sealing material temperature resistance | PTFE | -10-200°C | ||||||||
| FPM | -10-100°C | |||||||||
| Install | Flow direction below valve seat / valve seat | |||||||||
| Movement mode | Piston direct acting | |||||||||
| Medium | Air,Water,Oil,Stram,and any neutral gas. | |||||||||
| Pipe Size | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | G2 | G2 1/2 | G3 | G4 | |
| Path | 13 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| Kv (m3/h) | 4.2 | 8 | 19 | 27.5 | 42 | 55 | 90 | 115 | 200 | |
| Use pressure range MPa | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | |
| Minimum control pressure MPa | 0.3 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.4 | 0.4 | |
| Actuator size selection mm | 40/50 | 50 | 50/63 | 63 | 63 | 63/90 | 90 | 125 | 125 | |
