Name: SOLENOID VALVE SY SERIES SY - SFC (Thailand) Co., Ltd.
Price: 999.00 THB
Availability: InStock

คำอธิบาย

Type	Port size	Effective area	Temperature	CV Value	Consumption	Position&coil	pressure	Valtage

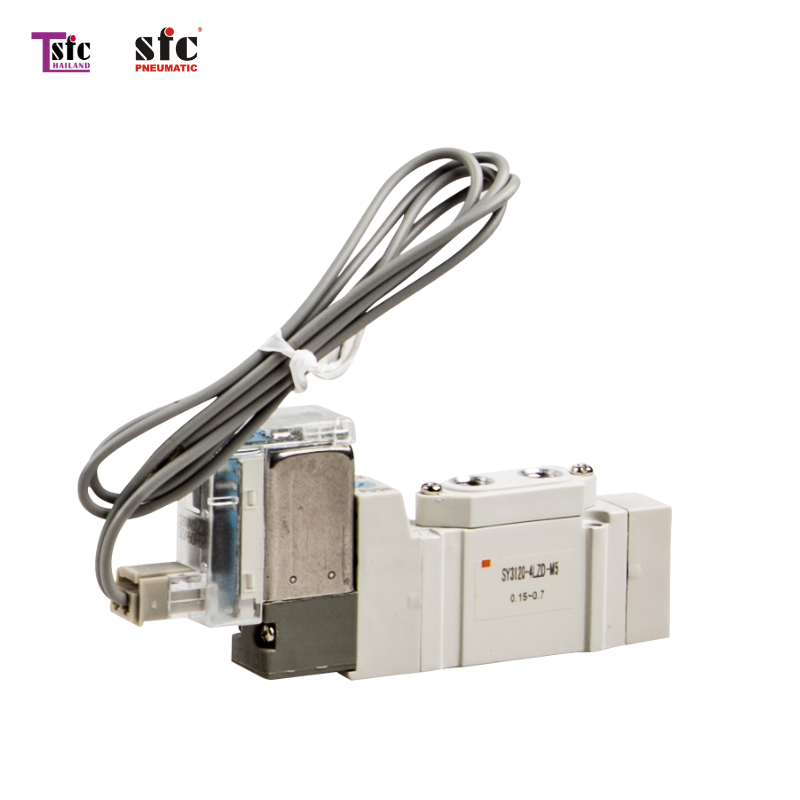

SY3120-M5	M5	0.61dm³/s.bar	-5-50°C	0.16	2.5VA	5/2 way Internally piloted acting type Single electrical control midst pressure type	0-9/kgf/cm²	1:AC110V 2:AC200V 3:AC110V 4:AC220V 5:DC24V 6:DC12V V:DC6V S:DC5V R:DC3V

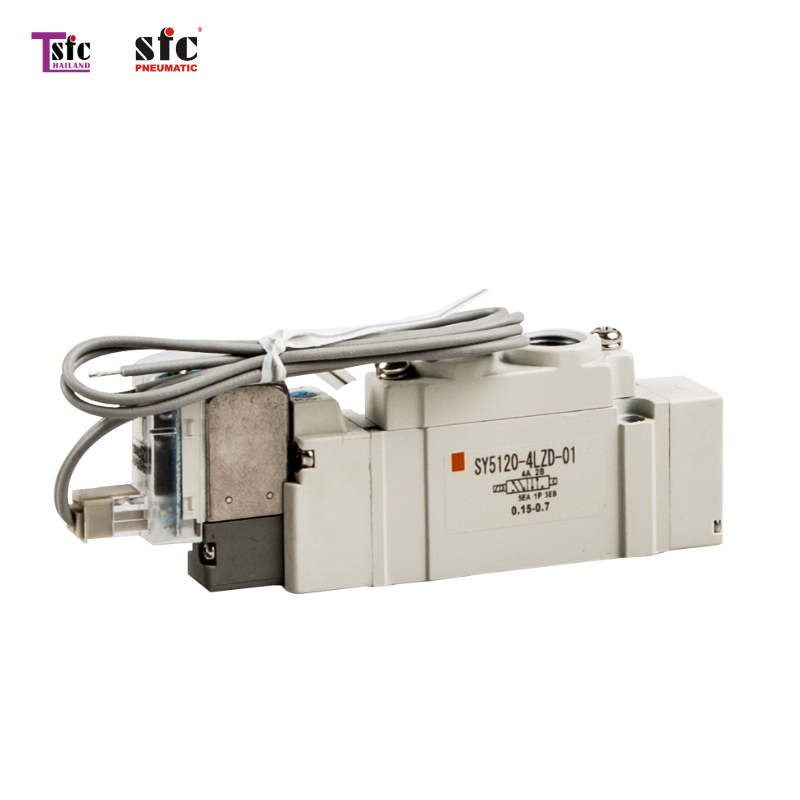

SY5120-01	PT1/8	1.90dm³/s.bar	-5-50°C	0.49	2.5VA
SY7120-02	PT1/4	4.10dm³/s.bar	-5-50°C	0.93	2.5VA
SY9120-02	PT1/4	7.0dm³/s.bar	-5-50°C	1.70	2.5VA
SY9120-03	PT3/8	8.0dm³/s.bar	-5-50°C	1.90	2.5VA
SY3220-M5	M5	0.61dm³/s.bar	-5-50°C	0.16	2.5VA	5/2 way Internally piloted acting type Double electrical control midst pressure type

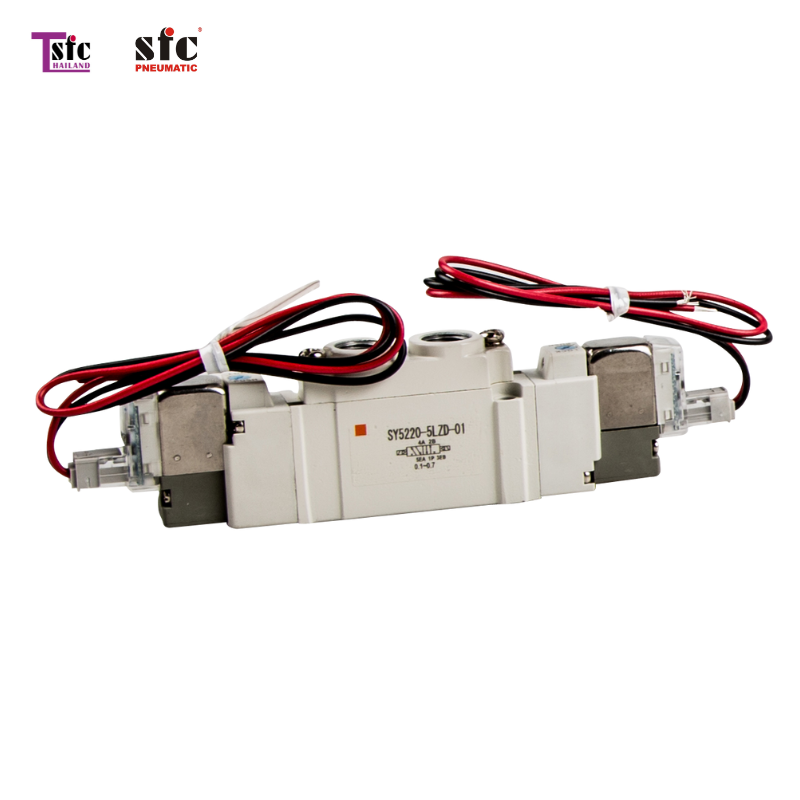

SY5220-01	PT1/8	1.90dm³/s.bar	-5-50°C	0.49	2.5VA
SY7220-02	PT1/4	4.10dm³/s.bar	-5-50°C	0.93	2.5VA
SY9220-02	PT1/4	7.0dm³/s.bar	-5-50°C	1.70	2.5VA
SY9220-03	PT3/8	8.0dm³/s.bar	-5-50°C	19.0	2.5VA
SY3320-M5	M5	0.48dm³/s.bar	-5-50°C	0.13	2.5VA	5/3 way Internally piloted acting type Double electrical control midst pressure type
SY5320-01	PT1/8	1.70dm³/s.bar	-5-50°C	0.45	2.5VA
SY7320-02	PT1/4	2.90dm³/s.bar	-5-50°C	0.70	2.5VA
SY9320-02	PT1/4	6.7dm³/s.bar	-5-50°C	1.70	2.5VA
SY9320-03	PT3/8	7.9dm³/s.bar	-5-50°C	1.90	2.5VA
SY3420-M5	M5	0.47dm³/s.bar	-5-50°C	0.13	2.5VA	5/3 way Internally piloted acting type Double electrical control midst pressure type
SY5420-01	PT1/8	1.5dm³/s.bar	-5-50°C	0.44	2.5VA
SY7420-02	PT1/4	2.5dm³/s.bar	-5-50°C	0.65	2.5VA
SY9420-02	PT1/4	6.4dm³/s.bar	-5-50°C	1.30	2.5VA
SY9420-03	PT3/8	8.0dm³/s.bar	-5-50°C	1.90	2.5VA
SY3520-M5	M5	0.50dm³/s.bar	-5-50°C	0.15	2.5VA	5/3 way Internally piloted acting type Double electrical control midst pressure type
SY5520-01	PT1/8	1.20dm³/s.bar	-5-50°C	0.61	2.5VA
SY7520-02	PT1/4	4.30dm³/s.bar	-5-50°C	0.97	2.5VA
SY9520-02	PT1/4	8.0dm³/s.bar	-5-50°C	1.80	2.5VA
SY9520-03	PT3/8	8.90dm³/s.bar	-5-50°C	2.20	2.5VA
