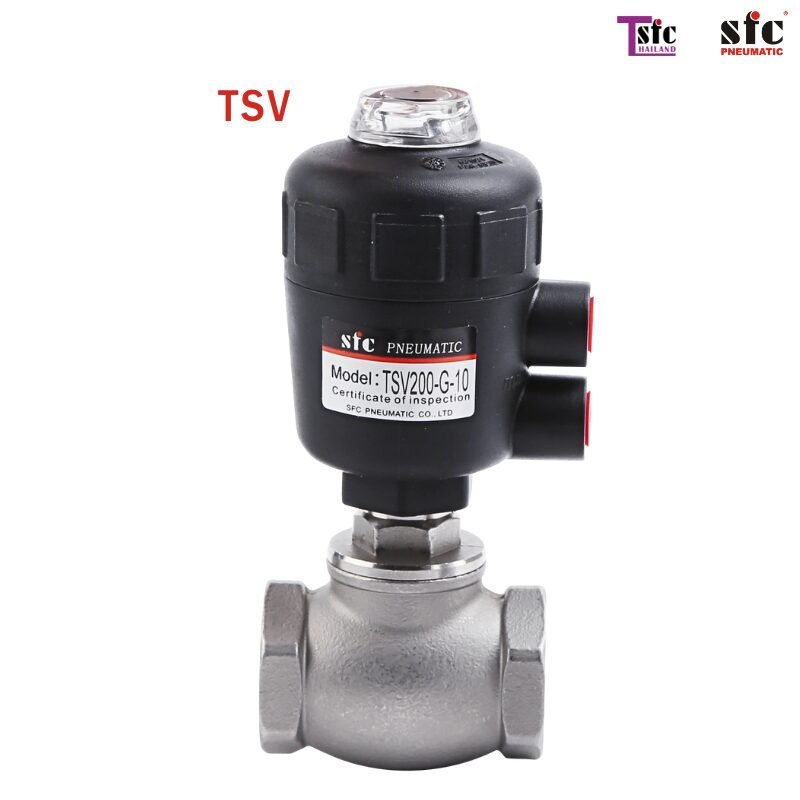

| Model | TSV200-G-04 | TSV200-G-06 | TSV200-G-10 | TSV200-G-12 | TSV200-G-14 | TSV200-G-20 | TSV200-G-24 |
| TSV200-G-04-NO | TSV200-G-06-NO | TSV200-G-10-NO | TSV200-G-12-NO | TSV200-G-14-NO | TSV200-G-20-NO | TSV200-G-24-NO |
| Effective area | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 |
| Install | Stainless steel 304 316/PA, stainless steel aluminum alloy |
| Movement mode | Piston direct acting |
| Medium | Air,Water,Oil,Stram,and any neutral gas. |
| Pipe Size | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | G2 | G2 1/2 |
| Path | 13 | 20 | 25 | 32 | 40 | 50 | 65 |
| Kv (m3/h) | 4.2 | 8 | 19 | 27.5 | 42 | 55 | 90 |
| Use pressure range MPa | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 | 0-1.6 |
| Minimum control pressure MPa | 0.3 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Actuator size selection mm | 40/50 | 50 | 50/63 | 63 | 63 | 63/90 | 90 |
